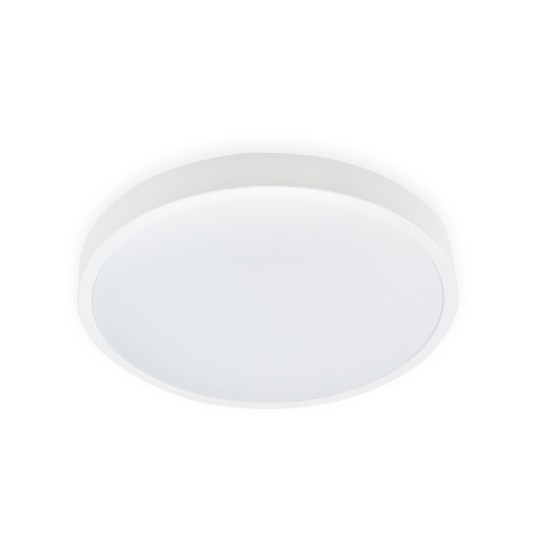

Ceiling lamp with motion sensor LED ZOE 13W 4000K IP44 LX white Kobi Premium

Go back

Symbol:
001896
EAN:
5902846015000
To know about the inventory, prices
and be able to place orders, log in.
Product description



  • led fixture with microwave motion sensor; with three ranges of adjustment: working time, light intensity and detection range,
  • working time: 5sec, 90sec, 5min, 15min,
  • light intensity: off or 2lx, 10lx, 50lx,
  • detection range: max. 6m and 10%, 50%, 75%, 100%,
  • detection range: 180 degrees,
  • beam angle: 115 degrees,
  • base made of steel plate, matt cover made of PMMA,
  • optimal installation height: 1,8 -2,5m,
  • fixture includes light sources of energy class F,
  • the LED light source can only be replaced by qualified personnel.





MODEL INDEX POWER [W] LIGHT COLOR LUMINOUS FLUX
[lm]		 NET WEIGHT [kg] PACKING
[pcs.]		 BARCODE
LED ZOE 13W LX NB KFZX13WNBBI 13 NEUTRAL WHITE 856 0,52 5 5902846015000



Specification
Beam angle [degrees]
115
Brand
Kobi Premium
Certifications
LVD
EMC
ROHS
Class of resistance against dust and humidity [IP]
IP44
Color Rendering Index
Ra ≥80
Color temperature [K]
4000
Control options
NO
EEI
F
Energy efficiency class in a LED fixture
F
Eprel
862777
Installation
ceiling-mounted
Light source’s life span [h]
25000
Luminous flux [lm]
856
On/off cycles
15000
Power [W]
13
Product color
white
Protection class
I
Protection degree against mechanical damages [IK]
IK06
Type of motion sensor
PIR motion
dusk sensor
Voltage
230
Warranty in years
3 years
Working temperature
-20
+40
Files to download
Files to download
Declaration of conformity
Product card
User manual
Photometric data file
